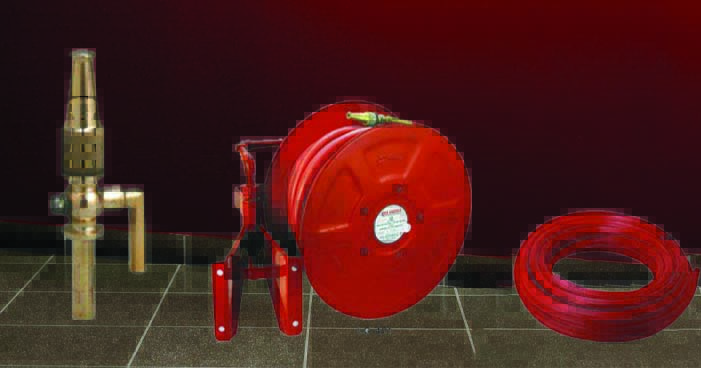

First AID Hose Reel
First AID Hose Reel
It is a cylindrical spindle, which is widely used for storing hoses. It can be customized as per the diameter and hose length that has to be carried. Moreover, it can be either fixed in a permanent location or can be attached to cart, truck and trailer. In addition, its modern design and long shelf feature has made it an absolute favorite. Thus, the offered First AID Hose Reel/Hose reel Drum is installed at hospitals, offices, schools and restaurants.
HOSE REEL DRUM
Hose reel drums are installed in easily accessible areas, so can be utilised at the time of fire safety requirements. They consists of the water inlet pipe, reel, and stop valve including hose reel tubing, shut off nozzle and give effective fire facility.
About Service
- Type A Swinging ( 180* Wall Mounting)
- Nozzle IS: 8090-1976
- Side Dice : Dia 500mm
- Hub Width: 230mm
- Thickness of Drum 1.63mm
- Material Used MS Sheet IS :513-1973
| BIS Specification | IS 884 |
|---|---|
| Type | A, Swinging Type, Wall Mounted |
| Size | INLET 20 MM |
| Sides, Hub, Wall Bracket | MS Sheet Conforming to IS 513 |
| Swivel Joint | Grade LTB2 of IS 318 |
| Pipe with Fitting | IS 1239 ( Part 1) |
| Hose | Rubber as per IS 444 |
| Shut off Nozzle | IS 8090 |
| Hydraulic Pressure Text | No Leakage at 21 kg/cm2 |
| Range of Throw at 7 kg/cm2 | Minimum 6 Meters |
| Discharge at 7 kg/cm2 | Minimum 24 LPM |
